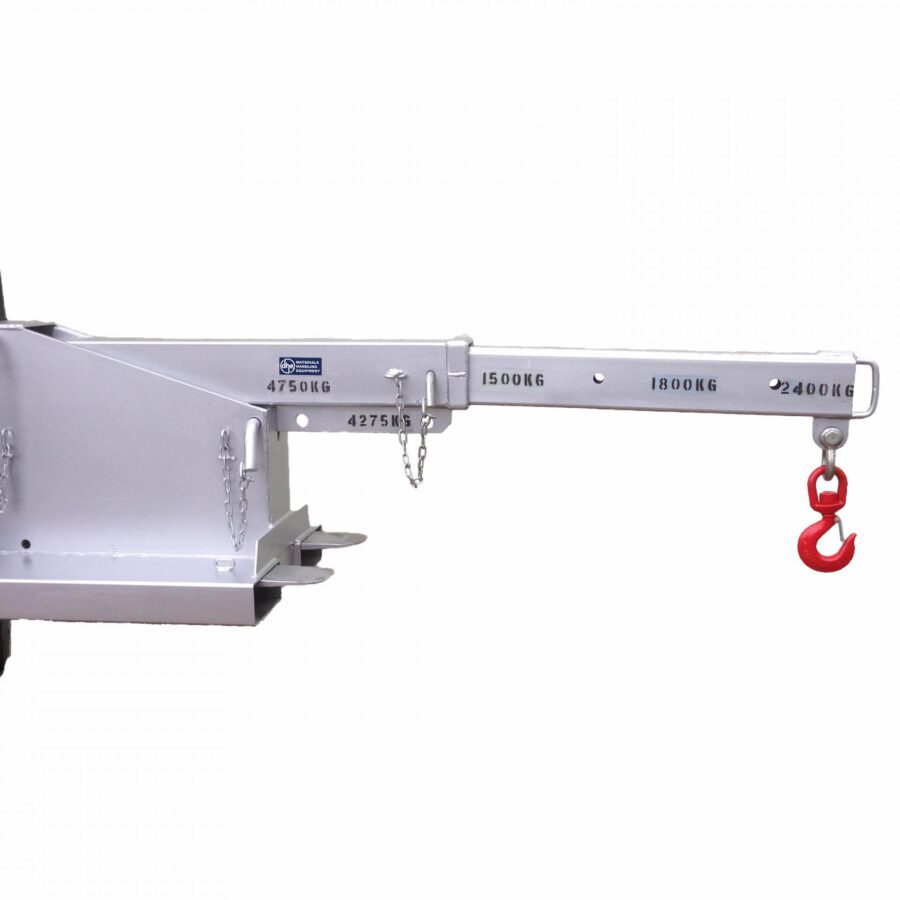

FORKLIFT JIB 4.75 TON INCLINE SHORT – DHE-IJS4.75
FORKLIFT JIB 4.75 TON INCLINE SHORT
The Incline Jib 4.75 Ton Short is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 1.36 metres can be gained while the Jib can be fully extended to 2.0 metres.
– Unit Weight 180Kgs
– Pocket Size 185mm x 75mm
– Pocket Centres 370mm
– The standard finish on this unit is Zinc plated.
– Supplied with Hook and Shackle.
All our Forklift attachments are fully compliant and come with a conformance plate attached. A compliance certificate and operations manual are available upon request.
Retail Price
$2,580.00
Safe Working Load Per Position
POSITION | 1 | 2 | 3 | 4 | 5 |
EXTENSION (mm) | 820 | 1120 | 1270 | 1650 | 2030 |
SWL (Kg) | 4750 | 3600 | 2400 | 1800 | 1500 |
